T4010 Telehandler specs
Lifting & Dimensions
| Parameter | Specification |
|---|---|
| Maximum Capacity | 4,000 kg |
| Maximum Lift Height | 10.6 m |
| Maximum Outreach | 6.1 m |
| Overall Width | 2.2 m |
| Overall Height | 2.55 m |
Engine & Transmission
| Parameter | Specification |
|---|---|
| Engine Model | YCD4J22T-115 |
| Engine Standard | National II |
| Cylinders / Displacement | 4 / 4,400 cm³ |
| Engine Power | 85 kW / 114 HP |
| Maximum Torque | 400 Nm @ 1,400 rpm |
Hydraulics & Working Specs
| Parameter | Specification |
|---|---|
| Transmission Type | Torque Converter |
| Forward / Reverse Gears | 4 / 4 |
| Maximum Travel Speed | 35 km/h |
| Fork Size | 1,220 × 125 × 50 mm |
| Unladen Weight with Forks | 10,300 kg |
T4010 Optional Configurations
The Hiosen T4010 Telehandler offers flexible configuration options for different markets, emission standards, climates, and working conditions. Customers can select engines, transmission systems, axles, and operator-comfort features to meet specific project requirements.
- Optional Cummins, Yuchai, Perkins, Yunnei, Fiat, and YTO engines
- Available configurations for National II, Euro III, Euro V, and EPA4
- Optional Chinese closed hydrostatic transmission system
- Premium Danfoss closed hydrostatic system available
- Optional wet brake axles for demanding applications
- Diesel heater for cold-weather operation
- Optional electric heated operator seat
- Certified ROPS cab for enhanced operator protection
- Additional configurations available according to customer requirements

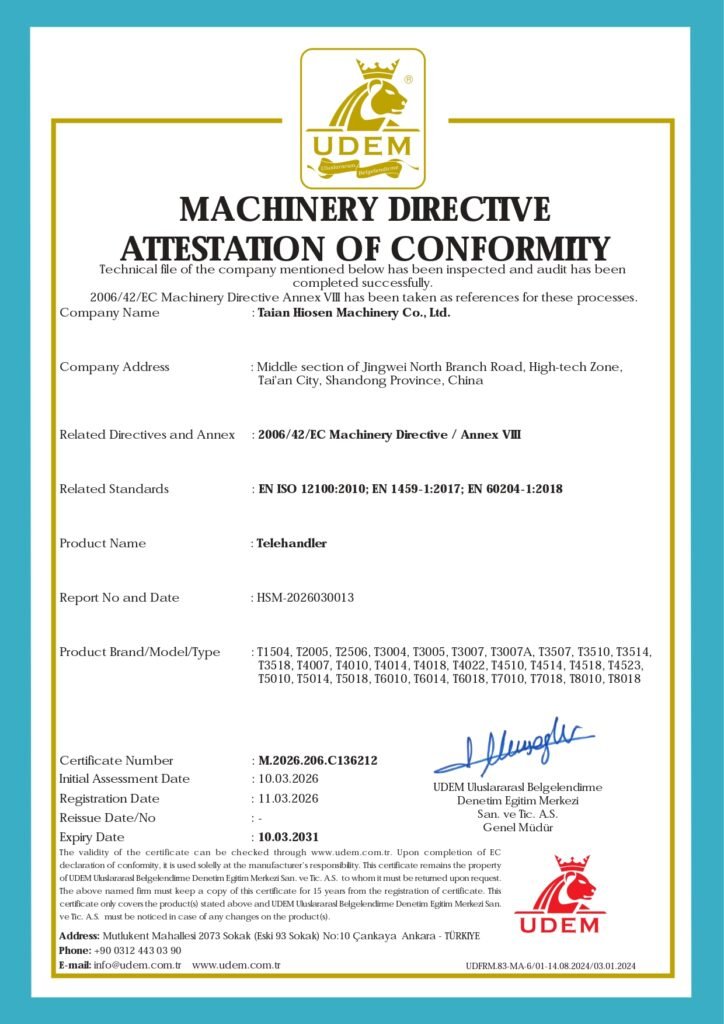

Certified Telehandler
Hiosen telehandlers are backed by recognized conformity certificates, demonstrating compliance with machinery directives, international standards, strict manufacturing controls, and dependable quality for global customers worldwide.
Why Choose us？
HIOSEN is a trusted telescopic handler manufacturer located in Tai’an, Shandong, China, with a 10,000 square meter factory and over 15 years of export experience. We specialize in 2–7 ton telehandlers with lifting heights from 7 to 18 meters, designed for demanding industries worldwide. With annual sales exceeding 2,000 units, exports to over 30 countries, and more than 1,500 machines delivered, we have built a strong global reputation. As a direct factory supplier, we offer competitive pricing, strict quality control, and flexible OEM/ODM customization. Certified by ISO9001, CE, SGS, and EAC, we ensure reliable performance. Our professional after-sales team provides fast support, spare parts supply, and technical guidance to guarantee long-term customer satisfaction.
- 48-hour global spare parts shipping ensures fast maintenance support
- Remote video diagnostics provide quick troubleshooting and technical assistance
- Complete technical documentation for easy operation and maintenance
- Direct factory supply with flexible MOQ and strict pre-delivery quality inspection
